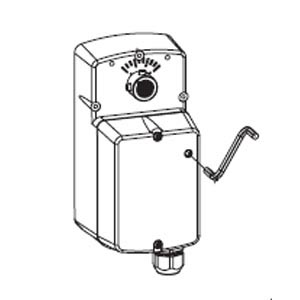

TAC DuraDrive Electric Overshaft Actuator w/Manual Override MA4D-703X MA4D-803X

MA4D-703X MA4D-803XDuraDrive Electric SR Damper and Valve Actuator w/Manual Override

Obsolete

MA4D-7033$171.00
Read moreMA4D-8031Obsolete
MA4D-7030Two Pos SR 120V 30 lb-in CCW$185.85
MA4D-7033-100Two Pos SR 24V 30lb.in CCW 10' plenum cable$171.00
MA4D-8030Two Pos SR 120V 30 lb-in CW$185.85
MA4D-8033-100Two Pos SR 24V 30 lb-in CW 10' plenum cable$194.36
Categories: ,

Description

Specifications:
Tac DuraDrive overshaft actuators are designed to provide an economical and reliable solution for many overshaft damper and ball valve requirements. All products accommodate shaft sizes up to 1/2″ in diameter.

Features:

  • Controlled by SPST controller
  • 30 lb-in of torque
  • Polymer housing rated for NEMA 2/IP54
  • Overload protection throughout stroke
  • Compact size
  • Manual override to allow positioning of dampers and valves
  • Directly mounts to 1/2″ to 3 ” ball valves
  • Polymer housing rated for plenum use
  • Wiring system is appliance wire except as noted

Download Product Spec Sheet

Additional information

Manufacturer

Barber Colman
