Description

Specifications:

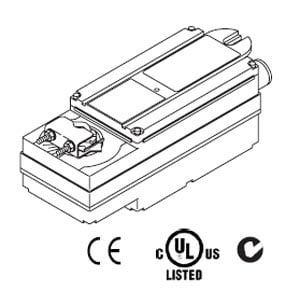

For spring return applications that require two-position control of dampers and valves in HVAC system.

• Spring Return
• Two Position Actuator

Features:

• 150 lb.-in. (17 N-m)
• On-Off Control
• Rugged die cast housing NEMA Type 4
• Custom automatic current sensing motor control provides extended reliability and repeatable timing
• Direct coupled to the damper shaft with dual industrial hardened universal mounting clamps
• Accuarate 93° travel digitally controlled
• Integral position indication scale
• Oil immersed gear train
• Rated for operating temperature up to 140°
• Can be double mounted to accommodate high torque applications
• 100% duty cycle

Download Product Spec Sheet
