Actuator 6-9 Vdc

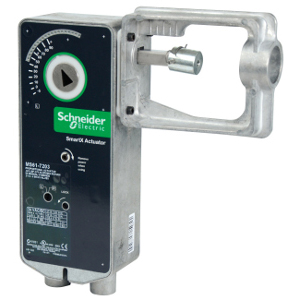

MS61-7203 Spring Return TAC DuraDrive Proportional Valve Actuator f/ VB-8000, 9000

$609.03 – $690.94

MS61-7203-50Actuator 0-10 Vdc$609.03
MS61-7203Actuator 2-10 Vdc$690.94
MS61-7203-40Actuator 6-9 Vdc$654.47
Categories: ,

Description

TAC DuraDrive Linear Actuators are designed to mount directly onto two-way or three-way globe valves without the use of linkages. They provide linear travel to operate globe valves 1/2″ to 2″ VB-8000 and VB-9000 valves. Linear spring return actuators provide control of valves in HVAC systems.

Features:

  • Proportional
  • Spring Return operation to valve stem up position
  • 24 Vac
  • 220lb.in with 1/2 in. nominal linear stroke
  • Manual override
  • Accessories are listed on the spec sheet

Download Product Spec Sheet

Additional information

Manufacturer

Barber Colman
