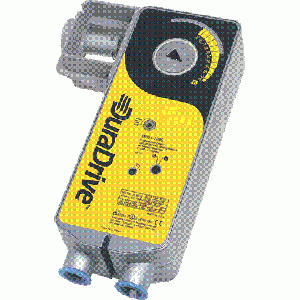

MS51-7203 Spring Return DuraDrive Proportional Valve Actuator

$499.95$594.49

MS51-7203Actuator 2-10 Vdc$594.49
MS51-7203-40Actuator 6-9 Vdc$499.95
MS51-7203-50Actuator 0-10 Vdc$499.95

Description

TAC DuraDrive Linear Actuators are designed to mount directly onto two-way or three-way globe valves without the use of linkages. They provide linear travel to operate globe valves 1/2″ to 2″ VB-7000 valves, discontinued 1/2″ to 1 1/4″ VB-9000 valves, 2 1/2″ to 4″ VB-9000 valves, and 2 1/2″ to 5″ VB-8000 valves in chilled water, hot water and steam applications up to 366° F. Linear spring return actuators provide control of valves in HVAC systems.

Features:

  • Proportional
  • Spring Return operation to valve stem up position
  • 24 Vac
  • 105 lb.in with 1/2 in. nominal linear stroke
  • Manual override
  • Accessories are listed on the spec sheet

Download Product Spec Sheet

Additional information

Manufacturer

Barber Colman
