Actuator 0-10 Vdc

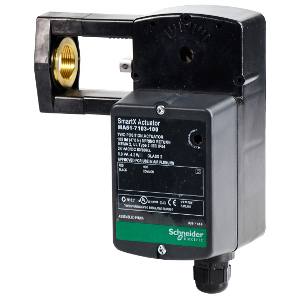

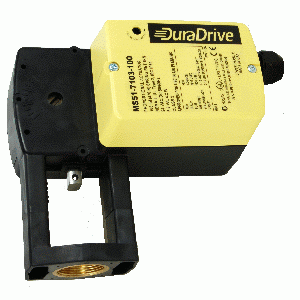

MS51-7103 Spring Return TAC DuraDrive Proportional Actuator

MS51-7103 Spring Return TAC DuraDrive Proportional Valve Actuator

$300.77 – $449.56

MS51-7103-150Act 0-10 Vdc, Plenum Cable$395.88
MS51-7103-160Act 4-20mAdc, Plenum Cable$395.88
MS51-7103-140Act 6-9 Vdc & Plenum Cable$300.77
MS51-7103-100Act 2-10 Vdc, Plenum Cable$395.88
MS51-7103-120Act 0-3 Vdc, Plenum Cable$449.56
MS51-7103-130Act 6-9 Vdc, Plenum Cable$449.56
Categories: ,

Description

TAC DuraDrive Linear Actuators are designed to mount directly onto two-way or three-way globe valves without the use of linkages. They provide linear travel to operate globe valves 1/2″ to 2″ VB-7000 valves, discontinued 1/2″ to 1 1/4″ VB-9000 valves, 2 1/2″ to 4″ VB-9000 valves, and 2 1/2″ to 5″ VB-8000 valves in chilled water, hot water and steam applications up to 366° F. Linear spring return actuators provide control of valves in HVAC systems.

Features:

  • Proportional
  • Spring Return operation to valve stem up position
  • 24 Vac
  • 105 lb.in with 1/2 in. nominal linear stroke
  • Manual override
  • Accessories are listed on the spec sheet
  • 3′ Plenum rated cable connections

Download Product Spec Sheet

Additional information

Manufacturer

Barber Colman
