M574 Pneumatic Damper Actuators Series

Obsolete

M574-12088-13 RA Linkage, Positioner 5/16 pushrod 1/2 shaft$398.70
M574-82114-8 RA w/ 1/2" shaft linkage & bracket$294.30
M574-82084-8 RA with ball joint for 5/16" push rod$288.90
M574-6520$294.30
Read moreM574-6211Obsolete
M574-6208$288.90
M574-55208-13 PM with clevis$294.30
M574-52118-13 RA w/ 1/2" shaft linkage & bracket$294.30
M574-52088-13 RA with ball joint for 5/16" push rod$288.90
M574-5000$209.70
M574-35205-10 PM with clevis and pin$294.30
M574-32115-10 RA w/ linkage for 1/2" damper shafts$294.30
M574-32085-10 RA w/ ball joint for 5/16" push rod$288.90
M574-2520$294.30
M574-22113-12 RA w/ linkage for 1/2" damper shafts$294.30
M574-22083-12 RA w/ ball joint for 5/16" push rod$288.90
M574-15208-13 PM clevis & positioner$421.20
M574-1211same as M574-1208$421.20
M574-85204-8 PM with clevis$288.90

Description

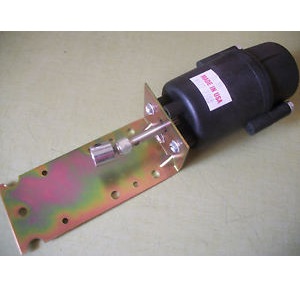

The M574 Series damper actuators are used in pneumatic control systmes to position automatic air dampers upon receipt of an air pressure signal from a control device. These actuators are equipped with right angle brackets and are adaptable to air conditioning, multi-zone, heating, ventilating, fan coil units, unit ventilators, mixing boxes, and VAV terminal boxes. Also available as post mounted actuator.


  • Mounting
    • equipped with a right angle bracket RA
    • Post Mounted PM
  • 4″ Stroke
  • Spring Range psig
    • 3 – 12 psig
    • 4 – 8 psig
    • 5 – 10 psig
    • 8 – 13 psig
    • 10 – 15 psig

Accessories

Download Product Spec Sheet

Additional information

Manufacturer

Barber Colman
