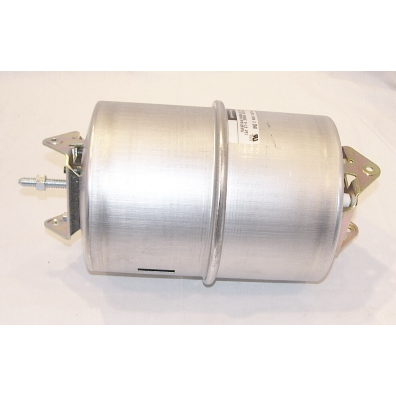

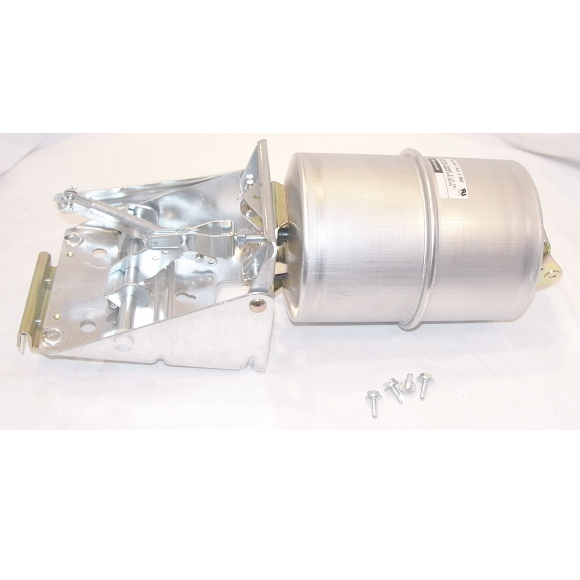

Honeywell MP918A & MP918B Pneumatic Damper Actuators

$169.65$358.00

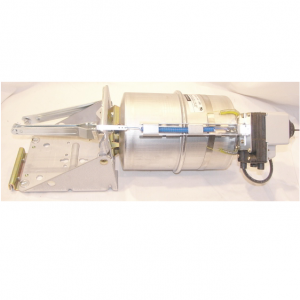

MP918A1057NEW Internal mounting MP918A-1057$358.00

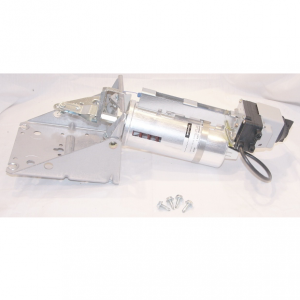

MP918A1024NEW External mounting$319.83
MP918B1220NEW 5 - 10 psi$239.77
MP918B1204NEW 8 - 13 psi spring range NC$260.40
MP918B1105NEW 8 - 13 psi spring range NO$224.85
MP918B1089NEW 8 - 13 psi spring range$178.60
MP918B1030NEW 3 - 13 psi spring range$169.65

Description

The MP918A & B are rolling diaphragm, piston type actuators with high actuator force for proportional control of medium to large size dampers in HVAC systems.

Features of the MP918A:


  • Positive Positioner
  • 5/32″ push-on barb (Pilot) 1/4″ push-on barb (Main) Air Connection
  • -20 – 158F Temperature Range
  • 3.5″ Stroke
  • 25psi Max Operating Pressure

Features of the MP918B:


  • 1/4″ OD plastic tubing
  • Air Connection
  • -40 – 158F Temperature Range
  • 3.5″ Stroke
  • 29 psi Operating Pressure

Download Product Spec Sheet

Rebuilt/Exchange Terms & Conditions

Additional information

Manufacturer

Honeywell
