Description

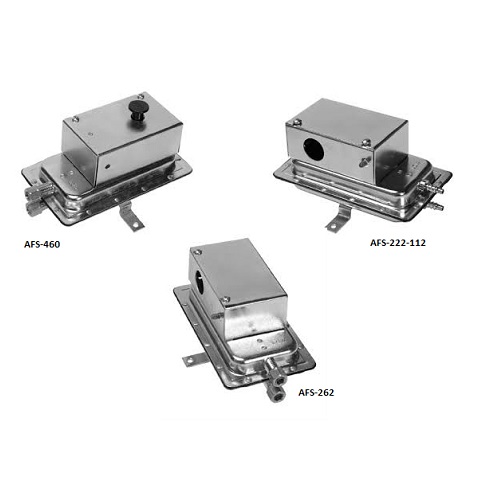

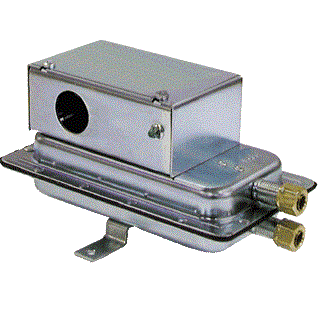

The plated housing contains a diaphragm, a calibration spring and a snap-acting SPDT switch. The sample connections located on each side of the diaphragm accept 0.25″ (6.35mm) OD tubing via the integral compression ferrule and nut or barbed fitting. An enclosure cover guards against contact with the live switch terminal screws and set point screw. Enclosure accepts a 0.5″ (12.7mm) conduit connection. Optional pressure ranges and manual resets available.
