Kreuter Pneumatic Relays

$16.15$45.06

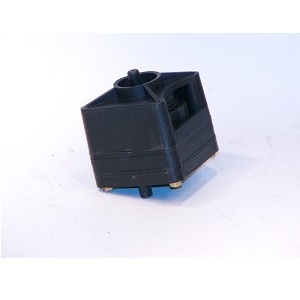

RCC-1009Diverting, SPDT$42.46
RCC-1006Low pressure selector$23.64
RCC-1108High pressure selector w/ bracket$16.15

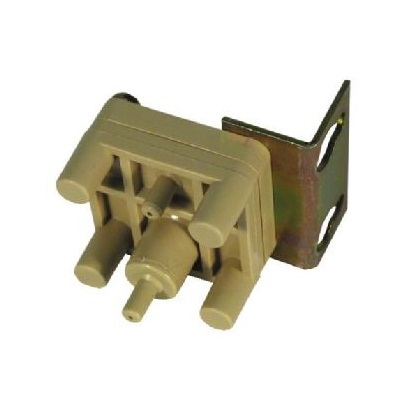

RCC-1106Low pressure selector, w/ bracket$16.77
RCC-1001Reversing, 9 psi calibration$22.88
RCC-1102Averaging$23.15

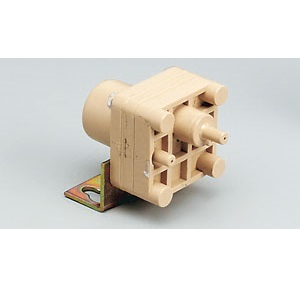

RCC-1101Reversing, 9 psi calibration, w/ bracket$25.50

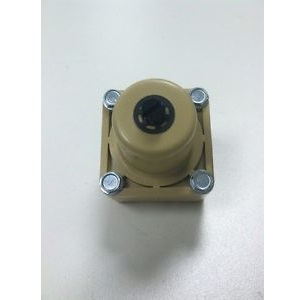

RCC-1012Reversing, 8 psi calibration$25.78

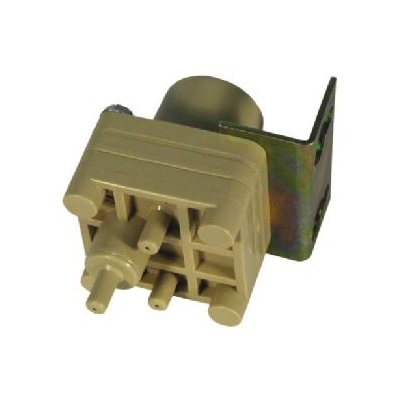

RCC-1112Reversing, 8 psi calibration w/ bracket$28.41

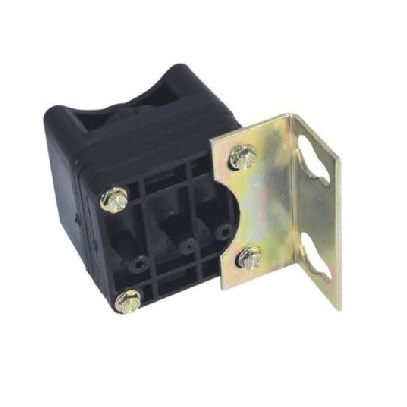

RCC-1109Diverting, SPDT, w/ bracket$45.06
RCC-1008High pressure selector$22.55

Description

KMC Controls Kreuter RCC-1000 Series Pneumatic Relays

  • RCC-1001, 1012, 1101, 1112 Pilot capacity pneumatic reversing relays designed for reversing a proportional signal from a controlling device. Factory adjusted to decrease branch line pressure as the input pressure increases. Comes with a bias adjustment and two factory calibration points. (8 and 9 psi)
  • RCC-1102 Averaging relay designed for applications that do not require large amounts of output air volume. Suitable for room or zone applications such as VAV terminals. Use where the output signal to the controlled device must be the average of two source signals.
  • RCC-1006, 1106 Low pressure selector relays are designed to control a final device based on the lower of two pneumatic input signals.
  • RCC-1008, 1108 High pressure selector relays are designed to select the greater of two pneumatic signals as the control signal for a final device. These signals must be supplied by “relieving” type devices such as thermostats and receiver-controllers.
  • RCC-1009, 1109 Adjustable diverting relays are SPDT devices. They divert one signal to either of two branch circuits or select one of two inputs and transmit it to another control device. They can also be used to feed, or exhaust, a circuit.
