AV-391 to AV-7600-1 Valve Linkage Kits

$22.46$579.96

AV-609-1$579.96

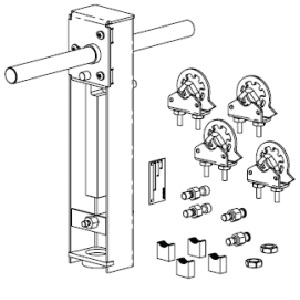

AV-607-1$542.06
AV-602$358.90
AV-7600-1for mountg MK-2690 to VB-7XXX 1/2"-2"$23.35

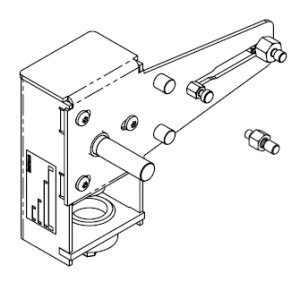

AV-611$212.26
AV-400AV- 400 valve linkage$22.91
AV-601Valve Linkage Extension Kit$91.60
AV-644for MF-22xx3 & MS-22353$59.90
AV-644-10AV-644 with drive screw$27.69
AV-650for Honeywell V-5011 & V-5013$319.27

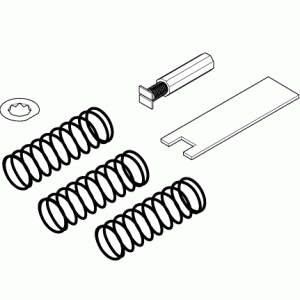

AV-7400for mountg MK-2690 to VB-7XXX 1/2"-2"$22.91
AV-600Hyd Valve Linkage Kit$22.46
AV-496$304.29
AV-391$284.04
AV-392$290.21
AV-393$290.21
AV-394$290.21
AV-395$290.21
AV-396$290.21
AV-401$22.91
AV-420$22.91
AV-430$94.24
AV-495$94.24
AV-497Vlv Linkage for MK-6811 MK-6911with VB-8XXX$211.38

Description

Applications and Specifications:

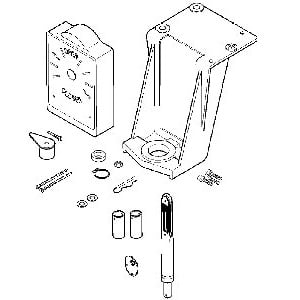

  • AV-391 Complete linkage for VB-9000 (1/2″ to 1 1/4″) & VB-700 (1/2″ to 2″)

    • requires Spring Return Actuator 180° Stroke
    • Min torque 40 lb-in.
    • Stem force 150 lb.

  • AV-392 Complte linkage for obsolete 1 1/2″ and 2″ VB-9xxx valves

    • requires Spring return actuator with 180° Stroke
    • Min torque 50 lb.in.
    • Stem Force 150 lb.

  • AV-393 Complete linkage for VB-9000 (1/2″ to 1 1/4″) & VB-7000 (1/2″ to 2″)

    • requires Non Spring Return Actuator 180° Stroke
    • Min torque 70 lb-in.
    • Stem force 300 lb.

  • AV-394 Complete linkage for obsolete VB-9000 (1 1/2″ to 2″)

    • requires Non Spring Return Actuator 180° Stroke
    • Min torque 100 lb-in.
    • Stem force 300 lb.

  • AV-395 Compete linkage for VB-9000 (2 1/2″ to 4″)

    • requires Spring Return Actuator 180° Stroke
    • Min torque 50 lb-in.
    • Stem Force 150 lb.

  • AV-396 Complete linkage for VB-9000 (2 1/2″ to 4″)

    • requires Non Spring Return 180° Stroke
    • Min torque 100 lb-in.
    • Stem force 300 lb.

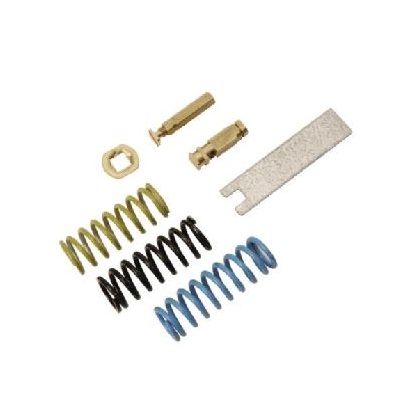

  • AV-400 Valve linkage kit used to field install MK-2690 pneumatic actuators to a variety of 1/2″ through 2″ valve bodies.

    • Springs are provided for all control signal applications (3 to 7, 5 to 10 and 8 to 13 psig)
    • use with current and obsolete TAC (Barber Colman) valve bodies
    • Contains parts for either VB-9xxx or VB-7xxx valve bodies

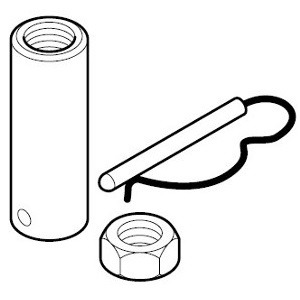

  • AV-401 Valve linkage kit used for assembling MK-46xx series pneumatic actuators to specific 1/2″ to 2″ VB-7xxx valve bodies
  • AV-420 Valve linkage kit used for MK-4800 or VB-9000 1 1/2″ to 2″
  • AV-430 Electric/Electronic and Pneumatic Valve linkage kit used for assembling

    • MK-6800 series 50 sq. in. pneumatic actuators to 2 1/2″ to 6″ VB-9xxx valve bodies
    • MK-6600 series 50 sq. in. pneumatic actuators to 1 1/2″ and 2″ VB-7xxx valve bodies

  • AV-495 Valve linkage kit used for VB-9000 2 1/2″ to 4″ with MK-6800 actuator
  • AV-496 Pneumatic Valve linkage kit for assembling pneumatic actuators MK-88xx and MK-89xxto 2 1/2″ to 6″ valve bodies

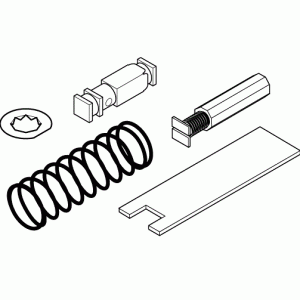

  • AV-600 Electric/Electronic Valve linkage kit for assembling MA-521x MF-5×13 MP-521x MP-541x MP-551x MPR-561x MPR-571x and MPR-581x series hydraulic actuators to (1/2″ to 2″) VB-7xxx and obsolete VB-9xxx valve bodies.

    • Tool-19 spring compression tool is recommended for assembly

  • AV-601 Electric/Electronic Valve extension kit is used to increase the allowable ambient temperature range of MA, MF, MP-5x1x-xxx, MPR-5x1x, and MP-541x series actuators. The MF-5x1x, MP-541x and MPR-5x1x series of actuators require the AV-501 extension.
  • AV-644 Valve linkage is designed for mounting MF-22xx3 series floating electric and MS-22353 proportional actuators onto TAC series valve bodies.

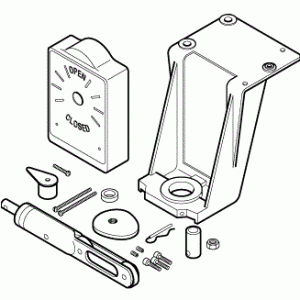

  • AV-650 Electric/Electronic valve linkage kit provides the interface between electric gear train actuators and Honeywell V-5011 two-way and V-5013 three-way (1/2″ to 3″) valve bodies with 1 3/8″ bonnets

Additional information

Manufacturer

Barber Colman
