Description

Applications: For assembling electric gear train actuators to valve bodies.

Features:

• die cast aluminum mounting bracket
• valve position indication provided as standard
• Actuator mounting – in any upright position with actuator above the center line of the valve body

Specifications:

• AV-21 Cam and Plunger Kit
  • 1/2″ to 2″ S.R.
  • for obsolete valves except VB-9000
• AV-27 Cam and Plunger Kit
  • 1/2″ to 2″ Neutral Band
  • for obsolete valves except VB-9000
• AV-29 Cam and Plunger Kit
  • 2 1/2″ to 3″ S.R.
  • Min torque 50 lb.in
  • Stem Force 150 lb.
• AV-30 Cam and Plunger Kit
  • 2 1/2″ to 3″ N.S.R.
  • Min torque 100 lb.in
  • Stem force 300 lb.

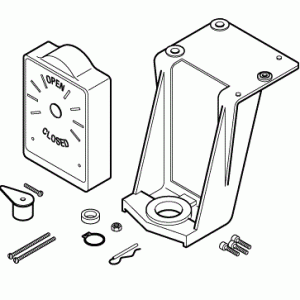

• AV-300 Common Parts Kit to be Used with AV-21 to AV-30
• AV-91 Plunger Cam and Stem Extension Kit
  • Min torque 40 lb.in
  • Stem Force 150 lb.
• AV-92 Cam and Plunger
  • for obsolete 1 1/2″ to 2″ S.R. VB-9000
• AV-93 Plunger Cam and Extension Kit
  • Min torque 70 lb.in.
  • Stem Force 300 lb.
• AV-94 Cam and Plunger
  • for obsolete 1 1/2″ to 2″ N.S.R. VB-9000
• AV-390 Cam, plunger, and stem extension kit
